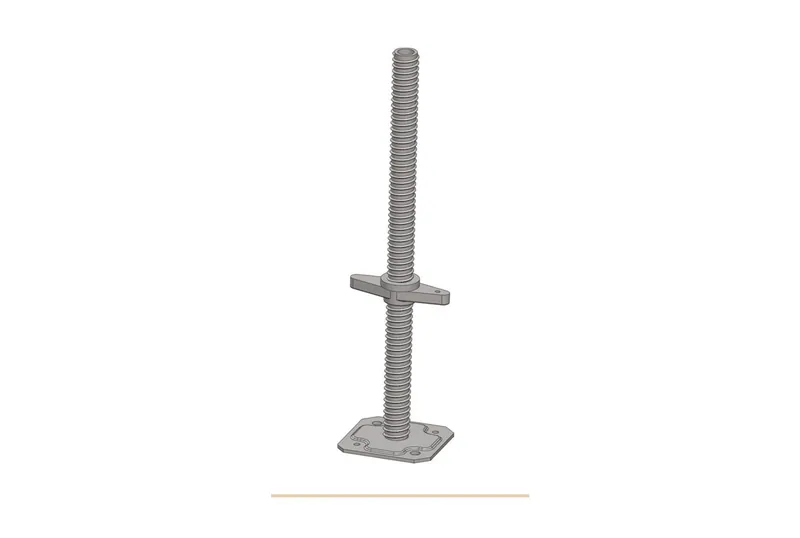

Base Jack
Steel, rolled thread, hot-dip galvanised, quick-fit thread, base plate 150 mm x 150 mm x 5 mm, lock against loosening of the knurled nut
| Length (m) | Weight (kg) | Product Code |
|---|---|---|
| 30 | 2,90 | S4001-030 |
| 50 | 3,20 | S4001-050 |
| 60 | 3,40 | S4001-060 |
| 80 | 3,80 | S4001-080 |
| 100 | 4,60 | S4001-100 |
| 120 | 5,00 | S4001-120 |

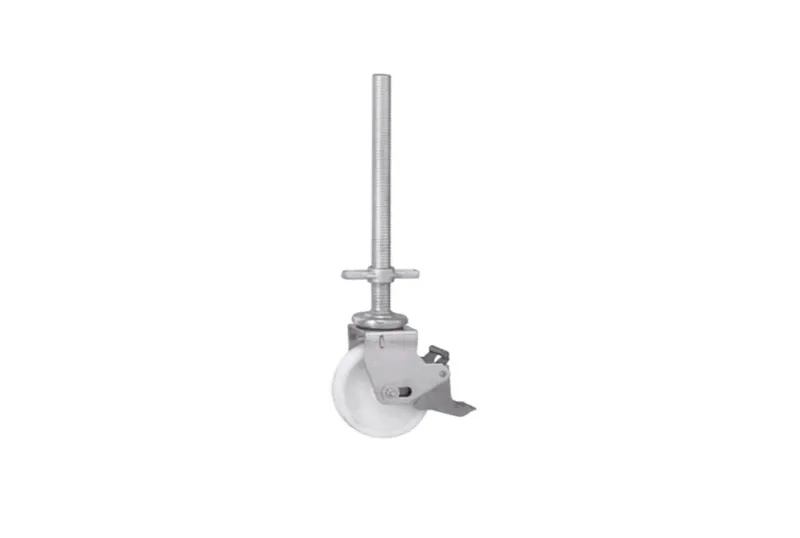

Base Jack with Castor
Height-adjustable thanks to the spindle mounted on a plastic castor with a load capacity of 1,000 kg. For mobile towers.
| Length (m) | Weight (kg) | Product Code |
|---|---|---|
| 60 | 7,00 | S4004-060 |

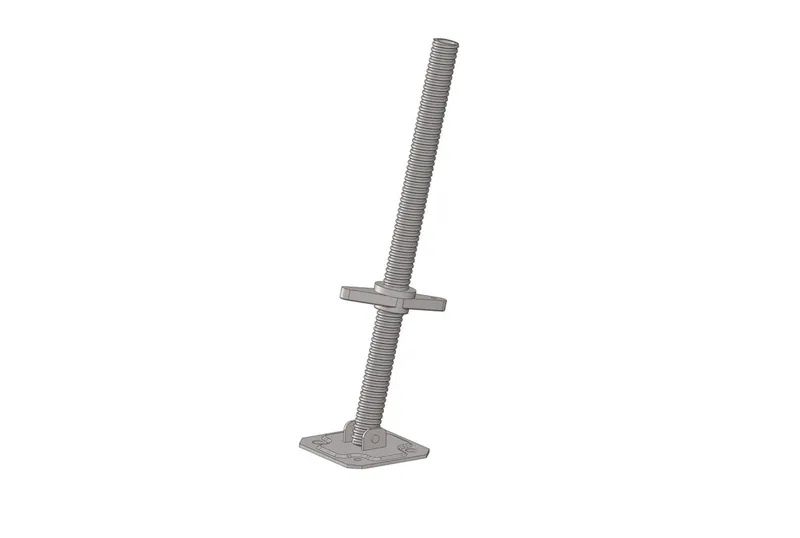

Swivel Base Jack.
Steel, rolled thread, hot-dip galvanised, quick-fit thread, base plate 150 mm x 150 mm x 5 mm, lock against loosening of the knurled nut
| Length (m) | Weight (kg) | Product Code |
|---|---|---|
| 60 | 3,40 | S4003-060 |
| 80 | 4,40 | S4003-080 |
